Splitter | b.safe

Material: Stainless steel
One of our current novelties.

Operating Instructions

Dimensional Drawing

Technische Zeichnung
Technische Zeichnung
Connecting thread Dimensions outside [(LxWxH) mm] Cat-no. Price*/piece Select the quantity for an offer or order and place it in the shopping cart
3x GL25 männlich/male 145 x 142 x 189 R680-01
R680-01 - Splitter | b.safe
Connecting thread 3x GL25 männlich/male
Dimensions outside [(LxWxH) mm] 145 x 142 x 189
Product description 3-way-ball valve with L-bore, stainless steel housing with 3 connections... more
Product information "Splitter | b.safe"

Product description

3-way-ball valve with L-bore, stainless steel housing with 3 connections GL25 male and integrated control module, 2 mounted signal cables (length: 2 m), aluminium mounting bracket for wall mount and power supply (input: 100-240V/1,2 A, output: 24V/max. 1,75 A) with plugs for EU, Australia, USA, Japan and UK. Dimensions: L 145 x W 142 x H 189 mm.

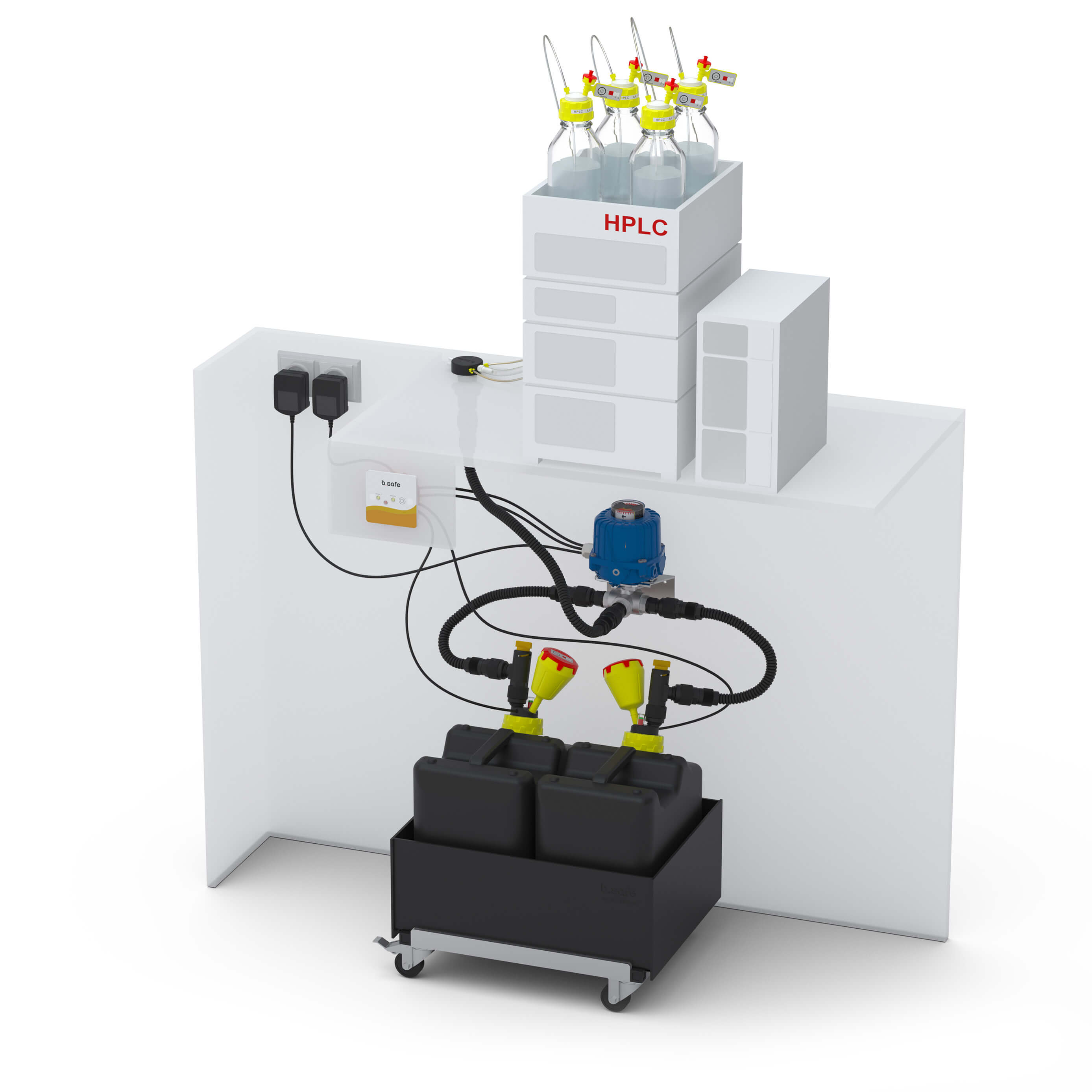

Connection thread GL25 to install b.safe Waste Tubes. In combination with a b.safe Display for splitter (cat. no. R 653-01) and b.safe Waste Caps with electronic level indicator, the b.safe Splitter allows an automatic filling of two canisters subsequently at one solvent collection point. The b.safe Splitter has to be installed by trained personnel.


Automatic switching from full to empty collection canisters to prevent them from overflowing. Ideal to lead large volumes that occur in preparative HPLC safely in canisters that are easy to handle. Special safety feature: in case of a malfunction, the splitter function uses remaining volumes in full canisters to prevent them from overflowing. The compatibility of b.safe Splitter with filling level devices of other brands has to be checked individually.
