Mini-Display Table

Preview: Mini-Display Table | b.safe - Image 3

Preview: Mini-Display Table | b.safe - Image 4

Preview: Mini-Display Table | b.safe - Image 5

Preview: Mini-Display Table | b.safe - Image 6

Technical information

Operating Instructions

Download: Mini-Display

Dimensional Drawing

Version	Dimensions [L x W x H mm]	No. of containers to be monitored	Cat-no.	Price*/piece	Select the quantity for an offer or order and place it in the shopping cart
1-Kanal / 1-channel	110 x 65 x 30	1	R659-01 A	€165.41
2-Kanal / 2-channel	110 x 65 x 30	2	R659-02 B	€188.15
DLC	110 x 65 x 30	1	R659-03 C	€219.75

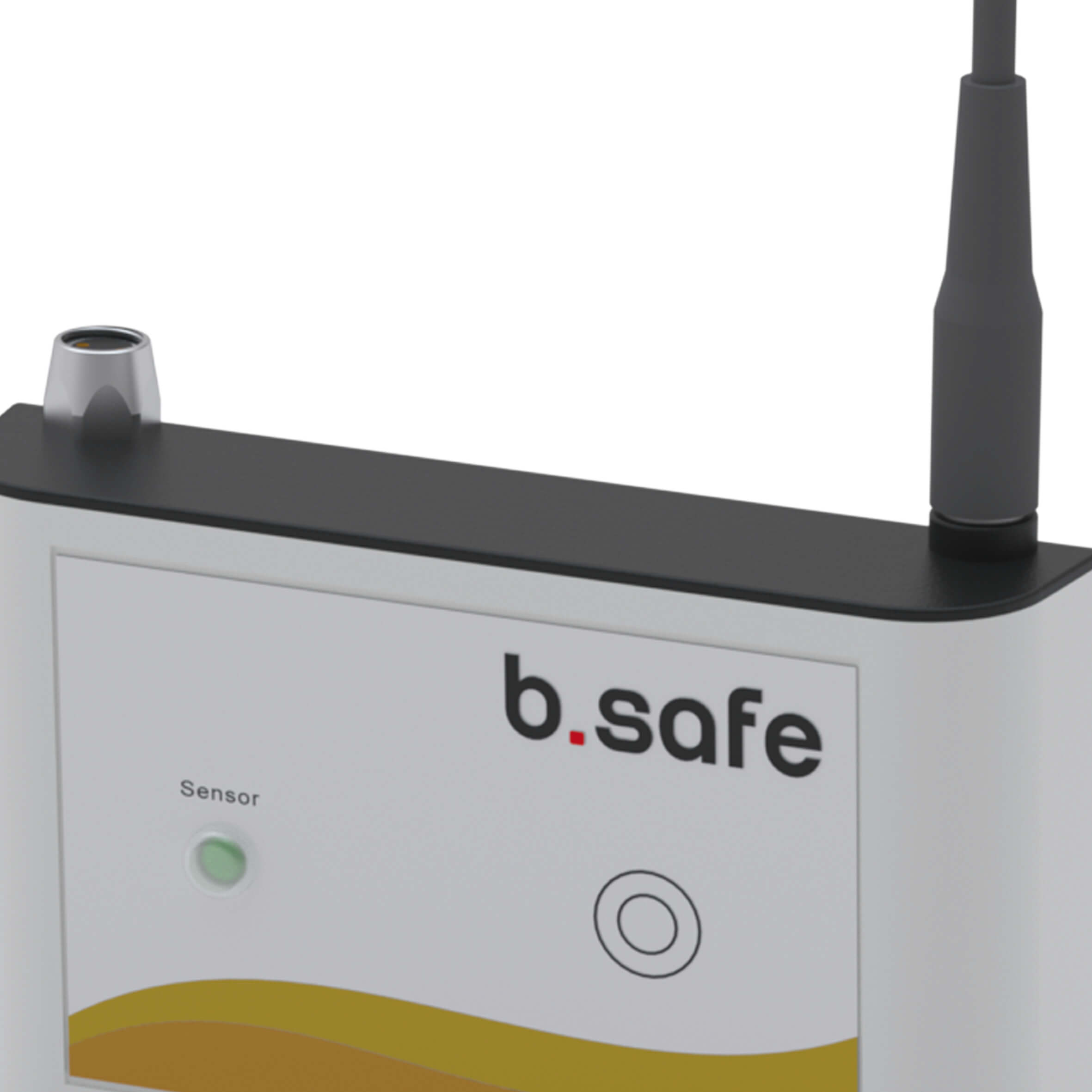

R659-01 - A - Mini-Display Table | b.safe

Version	1-Kanal / 1-channel
Dimensions [L x W x H mm]	110 x 65 x 30
No. of containers to be monitored	1

€165.41

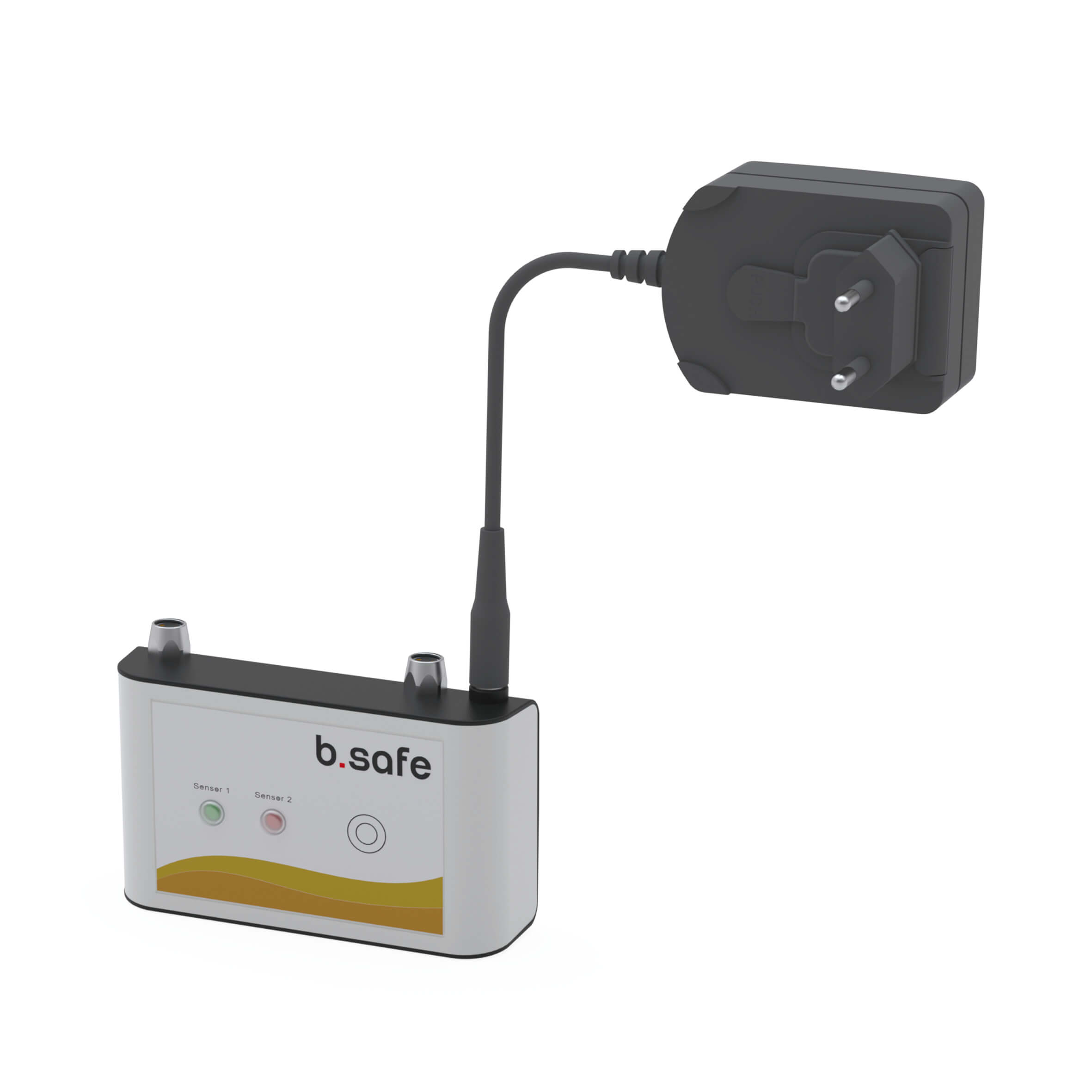

R659-02 - B - Mini-Display Table | b.safe

Version	2-Kanal / 2-channel
Dimensions [L x W x H mm]	110 x 65 x 30
No. of containers to be monitored	2

€188.15

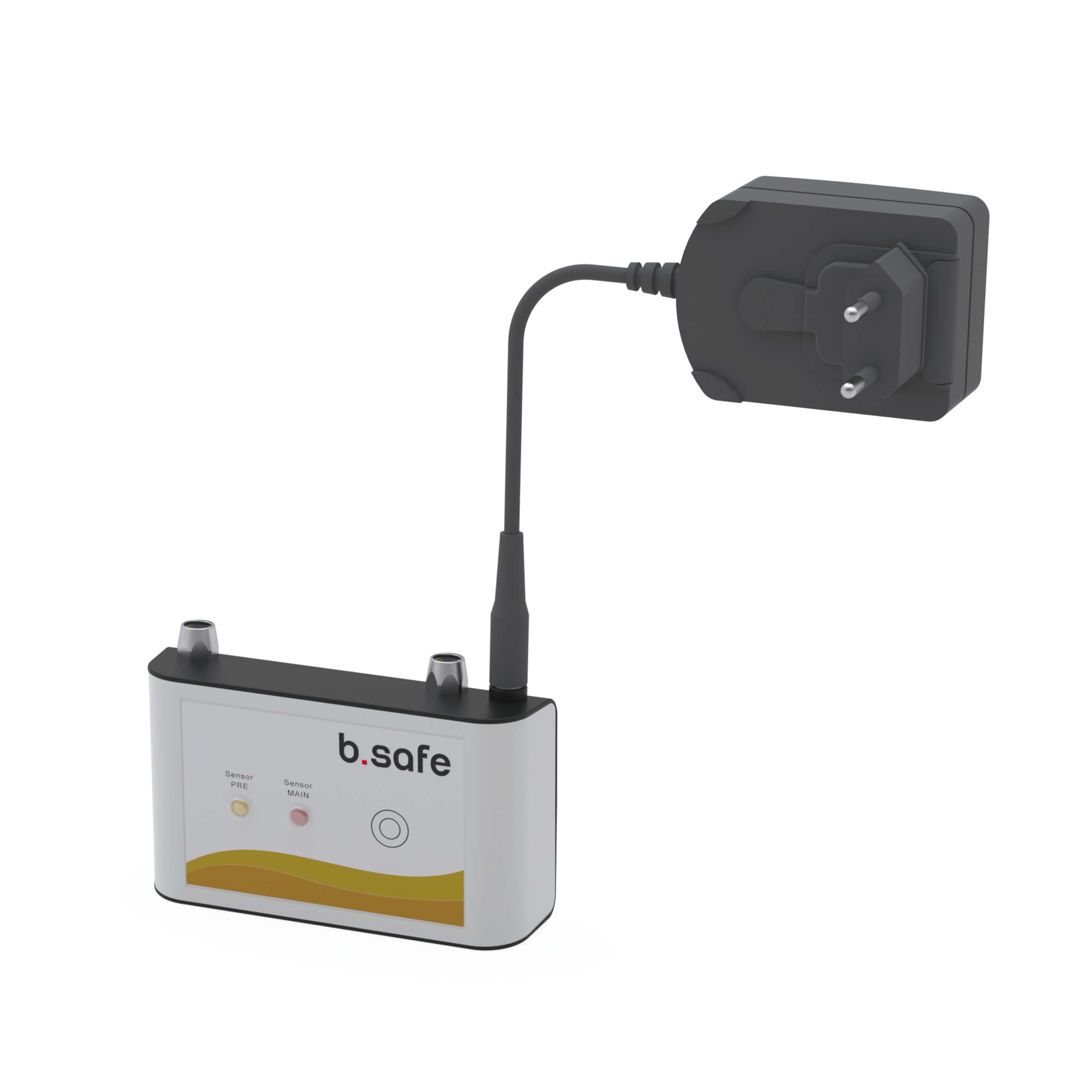

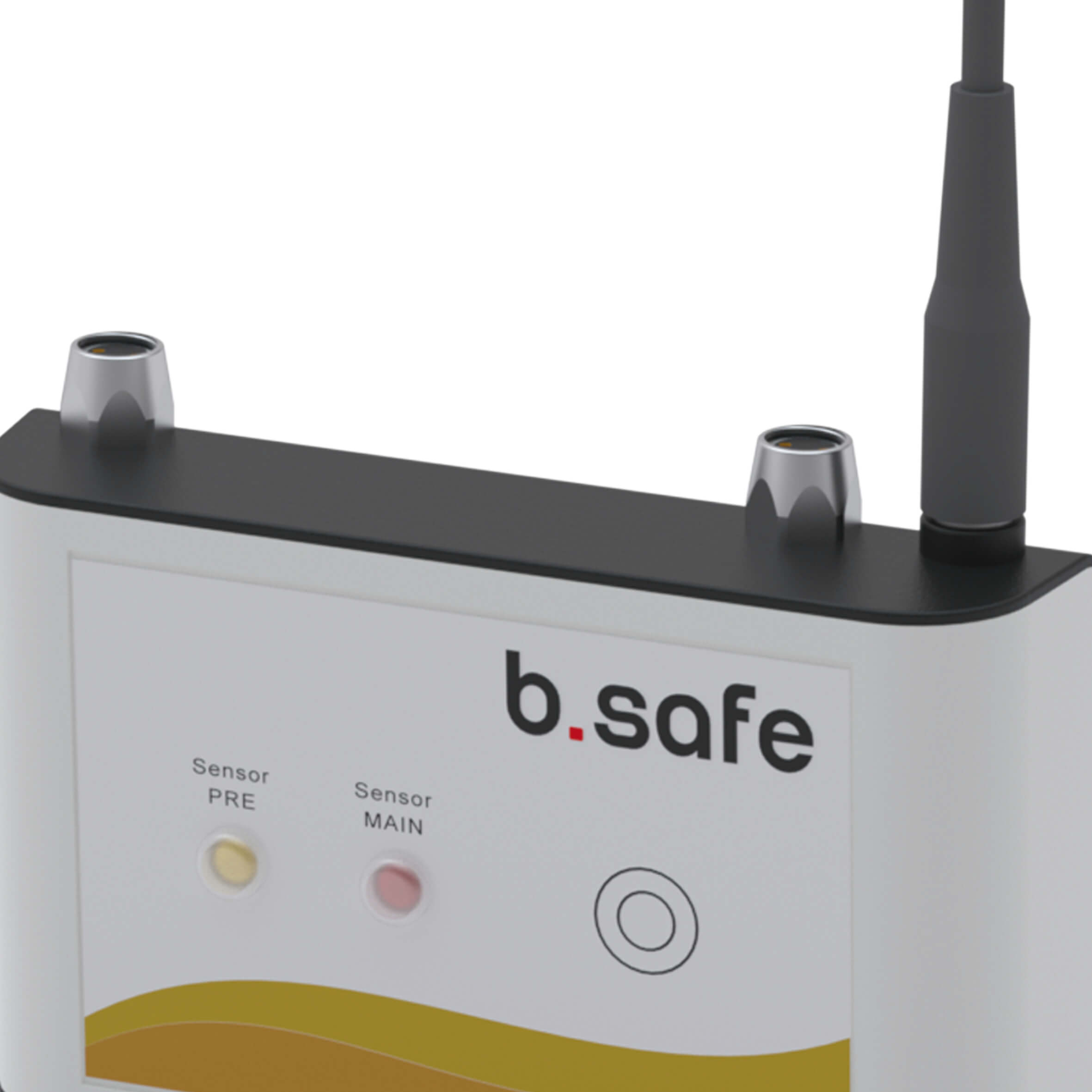

R659-03 - C - Mini-Display Table | b.safe

Version	DLC
Dimensions [L x W x H mm]	110 x 65 x 30
No. of containers to be monitored	1

€219.75

Product description Alarm box in plastic housing. Front side with touch buttons and LED... more

Close menu

Product information "Mini-Display Table | b.safe"

Product description

Alarm box in plastic housing. Front side with touch buttons and LED indicators to monitor the operation and the fill level of the connected sensors. Optical and acoustic main alarm starting when containers are full and stopping as soon as an empty container is confirmed. The acoustic Alarm can be deactivated for 5 minutes. Available as 1 channel and 2 channel version, suitable for b.safe Waste Caps LC / System Waste Caps LC with main alarm, DLC version for b.safe Waste Caps DLC / System Waste Caps DLC with pre and main alarm. Please note for the 2 channel version R 659-02: If only 1 channel is used, a Blind Plug (cat.-no. R 642-10, not included in the scope of delivery) must be connected to the 2nd sensor input to prevent a permanent alarm. Including power supply (input: AC 100-240 V/50-60 Hz, 0,5 A, output: 24 V DC, 0,5 A) with plugs for EU, Australia, USA, Japan and UK.

Applications

Display unit to monitor connected fill-level sensors in b.safe Waste Caps and b.safe System Waste Caps. Tight plastic case to place it in the work area. Easy operation via touch surface.
