Cap GL28 PPS - Removal of eluents

Chemical resistance:	+++ universal
Material:	PTFE, PPS
Temperature resistance:	from -20°C to +200°C

Technical information

Material Safety Data Sheets

Operating Instructions

Download: Caps

Number of Fittings [yellow]	Number of Blind Fittings [milky white]	Number of capillary connectors	Cat-no.	Price*/piece	Select the quantity for an offer or order and place it in the shopping cart
1 x Ø 3,2 mm	0	1	M128-01 A	€112.96
2 x Ø 3,2 mm	1	2	M128-02 B	€113.00

M128-01 - A - Cap GL28 | b.safe

Number of Fittings [yellow]	1 x Ø 3,2 mm
Number of Blind Fittings [milky white]	0
Number of capillary connectors	1

€112.96

M128-02 - B - Cap GL28 | b.safe

Number of Fittings [yellow]	2 x Ø 3,2 mm
Number of Blind Fittings [milky white]	1
Number of capillary connectors	2

€113.00

Product description Screw cap made of PPS for GL28 thread, free movable insert made of PTFE.... more

Close menu

Product information "Cap GL28 | b.safe"

Product description

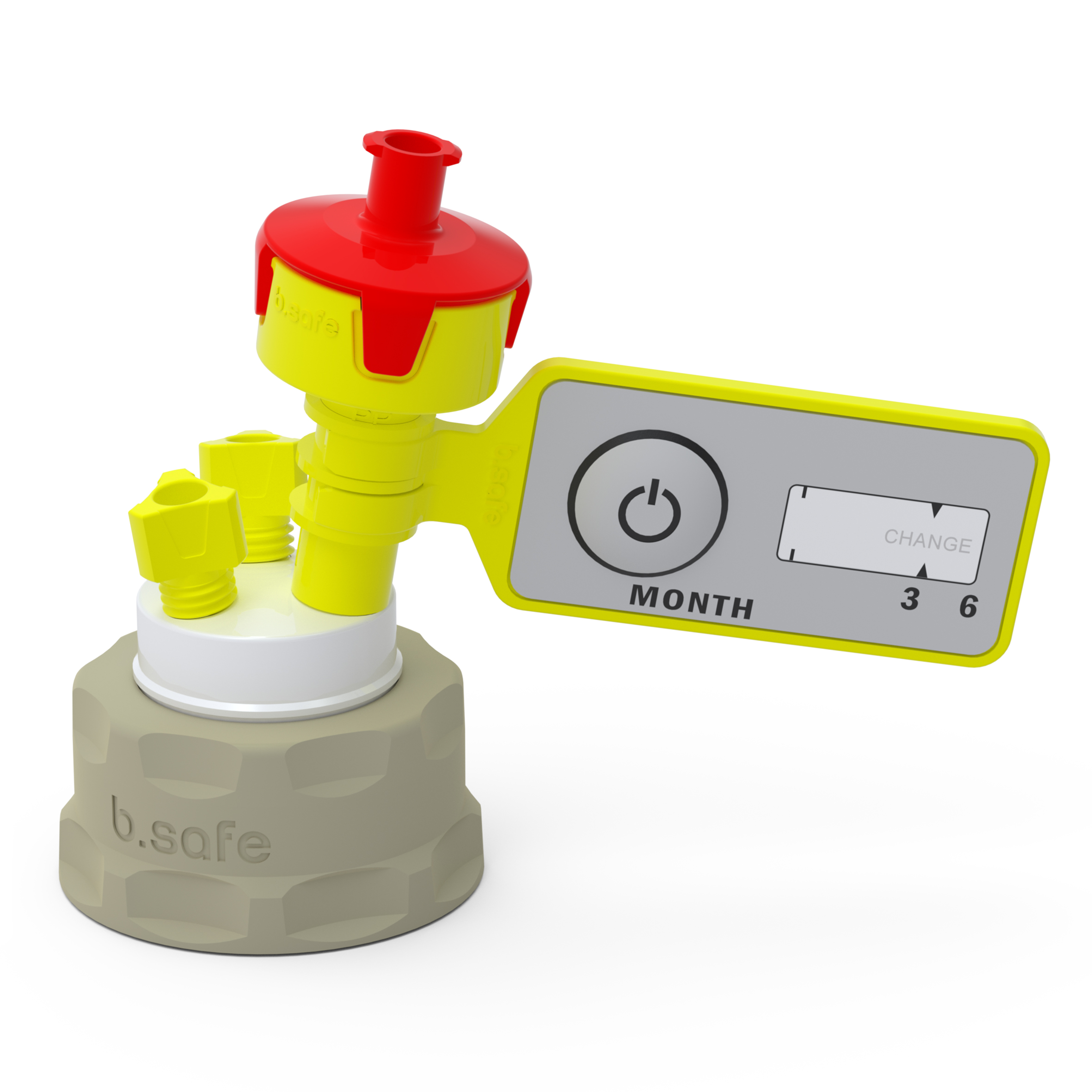

Screw cap made of PPS for GL28 thread, free movable insert made of PTFE. With PFA fittings for capillaries with O. D. 3,2 mm (thread UNF 1/4”), Blind Fittings made of PFA to close unused connections and an Air Valve with service life indicator. Version and scope of delivery as per below chart.

Applications

Perfectly matched system for removal of eluents. Tubing can be inserted onto the ground of the bottle by means of the b.safe fittings made of PFA. The conical seal cone clamps the tubing and seals the connection safely. The b.safe Air Valve is especially adapted to the flow rate in HPLC. The integrated non-return valve avoids evaporation of solvents and lets flow ambient air into the bottle in case of vacuum. The upstream porous PTFE membrane restrains pollutant particles and other contaminations from outside. The 6 months service life of the filter can be easily monitored through either activating the display on the cap and exchanging the valve in case of completely red colouring or documentation of the exchange date by hand and clip in the display at the valve.
